LC MULTIPLEXES
DIPLEXERS:
|
Part Number |
X-Over GHZ |
I.Loss dB |
X-over region |
Attn.From X-Over |
VSWR max. |
Weight grams. |
|
2SML-200-11PL |
0.20 | 1.75 | +/-5% |
>50 dB@+/-15% |
2 | 45 +/-5 |
|
2SML-380-11PL |
0.38 | 1.75 | +/-5% |
>50 dB@+/-15% |
2 | 45 +/-5 |
|
2SML-800-11PL |
0.8 | 1.75 | +/-5% |
>50 dB@+/-15% |
2 | 40 +/-5 |
|
2SML-1.8G-11PL |
1.8 | 1.75 | +/-5% |
>50dB @+/-15% |
2 | 40 +/-5 |
|
2SML-XX-11PL |
Your Spec | 1.75 | +/-5% |
>50dB @+/-15% |
2 | 40 +/-5 |
Size: 2.3 X 2.0 X .5 inch.

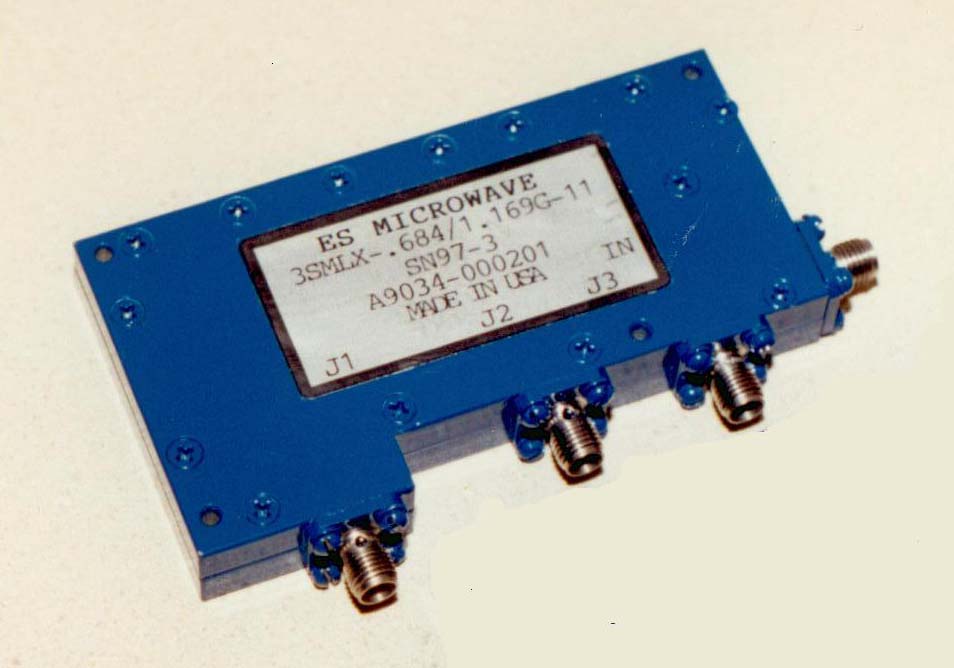

TRIPLEXERS:
|
Part Number |
X-Over GHZ |
I.Loss dB |
X-over region |
Attn.From X-Over |
VSWR max. |
Weight grams. |
|
3SML-.21/.33G-11PL |
0.21& 0.33 |
1.75 | +/-5% |
>50 dB@+/-15% |
2 | 60 +/-5 |
|
3SML-XX/XX-11PL |
Your Spec |
1.75 | +/-5% |
>50 dB@+/-15% |
2 | 60 +/-5 |
Size: 3.3 X 2.0 X .5 inch.
QUADRUPLEXERS:
|
Part Number |
X-Over GHZ |
I.Loss dB |
X-over region |
Attn.From X-Over |
VSWR max. |
Weight grams. |
|
4SML-.2/.28/.38G-11PL |
0.2, 0.28 & 0.38 |
1.75 | +/-5% |
>50 dB@+/-15% |
2 | 80 +/-5 |
|
4SML-.8/1.2/1.8G-11PLL |
0.8, 1.2 & 1.8 |
1.75 | +/-5% |
>50 dB@+/-15% |
2 | 80 +/-5 |
|
4SML-XX/XX/XX-11PLL |
Your Spec |
1.75 | +/-5% |
>50 dB@+/-15% |
2 | 80 +/-5 |
Size: 4.65 X 2.0 X .5 inch.
Connectors: RF PINS (ALL UNITS)
NOTE: Please consult the factory with your specific requirements.
For more information, please feel free to contact us at (301) 519 - 9407, or email us at: esmllc@aol.com
8031 Cessna Avenue
Gaithersburg, MD 20879
(Fax) 301-519-9418
