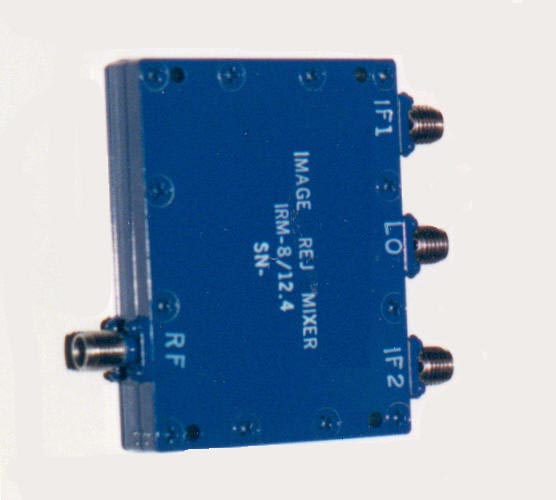

Image Reject Mixers



bullet

Connectors: SMA Standard, others available upon request.

bullet

Operating Temp: -54 to +100 degrees Celcius.



Specifications:

Image Rejection Mixers Specifications:

Frequency LO/RF Isolation Conversion Loss RF VSWR

LO VSWR

IF Out Image Rejection Part Number
GHZ DB Min/Type DB Max/Type max max MHZ DB @ IF type
1-2 14/20 8.5/7 2.0:1 2.5:1 40-80 20 IRM-1/2
2-4 14/20 8.5/7 2.0:1 2.5:1 40-80 20 IRM-2/4
4-8 14/20 9/7.5 2.0:1 2.5:1 40-80 20 IRM 4/8
8-12.4 14/20 9.5/8 2.0:1 2.5:1 40-80 20 IRM-8/12.4
12.4-18 12/18 10/8.5 2.5:1 3.0:1 40-80 18 IRM-12.4/18


Quadrature IF Mixers Specifications:


Frequency LO/RF Isolation Conversion Loss RF VSWR

LO VSWR

IF Out IF Amp. Bal IF Pahse Bal Part Number
GHZ DB Min/Type DB Max/Type max max MHZ DB Deg.
1-2 18/24 12/10 2.0:1 2.0:1 DC-400 +/- 1.0 +/-10 IRM-1/2
2-4 18/24 12/10 2.0:1 2.0:1 DC-400 +/- 1.0 +/-10 IRM-2/4
4-8 18/24 12/10 2.0:1 2.0:1 DC-400 +/- 1.0 +/-10 IRM 4/8
8-12.4 18/24 13/10 2.0:1 2.0:1 DC-600 +/- 1.6 +/-15 IRM-8/12.4
12.4-18 15/20 14/11 2.5:1 2.5:1 DC-600 +/- 1.8 +/-15 IRM-12.4/18


Conversion Loss measured from RF input to one IF output. If both outputs are used, then the effective conversion loss is 3dB less.

Specifications are for 60MHz IF center frequency. Other IF frequencies are available from 30 to 240 MHz. LO drive is +7 dBm Typical. +10 dBm and +15 dBm are available.

Mixers with bias are also available.

Connectors: SMA standard, others on request.

Operating Temp -54 to +100 deg. C.
