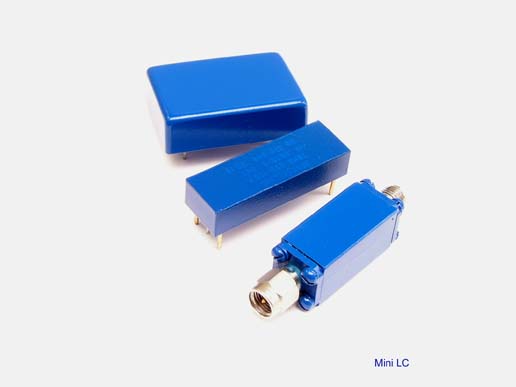

Wideband Bandpass / Highpass Filters
 |
Frequency Range: DC to 40GHZ. |
|
Passband: DC to 40 GHZ (or any segment thereof). |
|
Insertion Loss: 1.0 dB Typical within Passband. |
|
Rejection/Isolation: 55 dB minimum. |
|
VSWR: 2:1 max. |
|
Connectors: SMA. |
|
Selectivity: from N = 3 to N = 15 Pseudo Elliptic Response. |
|
Size: miniature. |
|
Low Profile. |
HIGHPASS:
|
Part Number |
Cutoff Freq. GHZ |
I. Loss dB |
Passband GHZ |
Attn. From Cutoff |
VSWR max. |
|
5HS-1/8 |
1 |
1 |
Up to 8.0 |
Typical 5-Section |
2 |
|
5HS-2/18 |
2 |
1 |
Up to 18.0 |
Typical 5-Section |
2 |
|
HSX/X |
your spec. |
1 |
your spec. |
your spec |
2 |
BANDPASS:
|
Part Number |
Bandedge Freq. GHz |
I. Loss dB |
Ripple dB |
Attn. From Bandedges |
VSWR max. |
|
13AS-2/6 |
2.0-6.0 |
1.2 |
+/-.5% max |
55dB @+/-15% |
2 |
|
13AS-6/18 |
6.0-18.0 |
1.5 |
+/-.5% max |
55dB @+/-15% |
2 |
|
13AS-X/X |
your spec |
1.5 | +/-.5% max |
55dB @+/-15% |
2 |
NOTES:
1- For extended passbands or different frequencies contact the factory.
2- Units are available with 60 dB rejection to within 7% of the band edges.
3- Units with phase and amplitude matching are available.
4- Operating temperature range: -55 to +90 deg. C.
5- Consult the factory for size, outline drawings, connectors, etc.
ENVIRONMENT: MIL-E-5400 CLASS II.
